Best Seller Ebike 48V 500W Battery Hidden 27.5 29inch Mountain Electric Bike

Best Seller Ebike 48V 500W Battery Hidden 27.5 29inch Mountain Electric Bike

It is the ultimate Dual Sport eBike for adventurers to commuters alike.

it boasts a lightweight alloy frame, 27.5” wheels, disc brakes and a front suspension with 80mm of travel that can take on all terrains. It comes with CST semi knobby tires which gives a great balance for road, gravel, and off-road riding. Equipped with Shimano 8 speed technology for a range of gears to tackle any climb on your ride.


Product Detail

Product Tags

Introduction:

It offers a 500W rear hub motor, a frame integrated 48-volt lithium-ion Greenway battery, and a max range of 35 miles. The LCD display gauges battery life, motor output, assistance level, speed, trip and total distance as well as trip time. With dual assistance options you can use pedal assist or just the throttle- and can be ridden without assistance at all to increase its range. Top speed is 20 MPH and extras include a bell and a high powered front light and a unique power shut-off braking function that will extend the range of your battery.

This chameleon can take you anywhere from the city to the trails and beyond. This bike is a force to be reckoned with so get on and enjoy.

  • MOTOR/BATTERY: 500W Rear Hub Motor, a frame integrated 48-volt Lithium-Ion Greenway battery
  • FRAME/FORK: Alloy frame with integrated battery, 27.5″ suspension fork with 80mm of travel and disc brakes
  • Charge Time: 8 Hours
  • 35 Mile Range
  • Power shut-off brake levers
  • EXTRAS: Front Headlight, Bell, Braking/Motor Shut-off feature

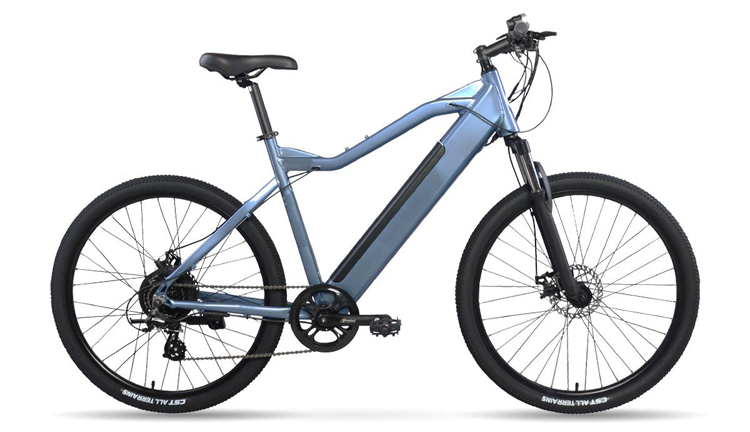

Product photo

FC04A-SM_ D



Detail Photos

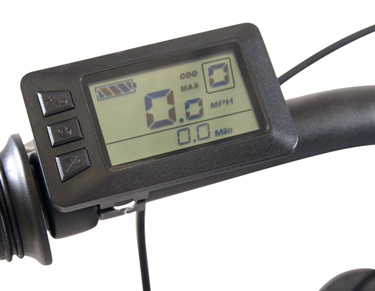

display d LCD Display

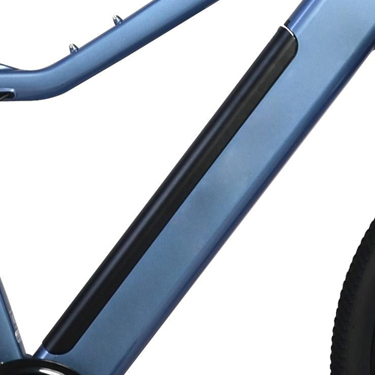

Integrated 48-volt Lithium-Ion Greenway battery

intergrated battery d

Specification:

Frame:

27.5″, Alloy, BC 1.37″x24t, disc

Fork/Suspension:

Disc brake, 27.5″, 50mm travel

Wheelset:

Alloy, double wall, 27.5″, 36h

Tires:

CST 27.5×1.95″

Shifters/Brake Levers:

Shimano 3x7s, power shut-off brake levers

Front Derailleur:

N/A

Rear Derailleur:

Shimano Altus 8s M310

Crankset:

44t, 170mm

Bottom Bracket:

Square taper, cartridge, 68mm

Cassette/Freewheel:

Shimano 8s, 12-32t

Chain:

KMC 8s

Pedals:

Platform, 9/16″

Handlebar:

Alloy, 31.8x660mm

Stem:

Alloy, 90mm

Headset:

28.6-44/56-30

Grips/Tape:

Black, rubber

Brakeset:

Mechanical Disc brake w/ 160mm rotor

Saddle:

Black

Seat Post/Clamp:

Alloy 30.4x350mm

Extras Included:

Bell

Manufacturers Warranty:

Frame: Lifetime, Parts & Components: 1 year

Top Speed:

20 MPH

Drive Mode:

5 levels, Throttle and Pedalec

Display Accessories:

LCD

Readouts:

Battery level, motor output, assistance level, speed, trip and total distance, trip time

Display Type:

LCD

Estimated Max Range:

35 Miles

Estimated Min Range:

29 Miles

Charge time:

8 Hours

Battery Chemistry:

Lithium-ion

Battery Watt Hours:

696Wh

Battery Amps:

14.5Ah

Battery Voltage:

48V

Battery Brand:

Greenway

Motor Torque:

35 N.m

Motor Peak Output:

600 W

Motor Nominal Output:

500W

Motor Type:

Rear hub

Motor Brand:

MXUS
