China Wholesale Mid Drive Motor For Bicycle Manufacturers - Top Quality 36V 250W/ 48V 350W Mountain Electric Bike Pedal Assist Mid Drive Electric Bicycle Kit for Emtb – Eecycle Detail:
Chongqing ZhenYouJin Technology Co.,Ltd
Our company is a professional manufacturer of ebike with mid motor and complete mid drive system, sell its AQL brand products in Europe, the United States and South America. Since the foundation, we have taken quality and service as our keys. We have professional engineers to design the electric system for you. Include motor, battery, display and controller.
Our Mid Drive Models for your Choice

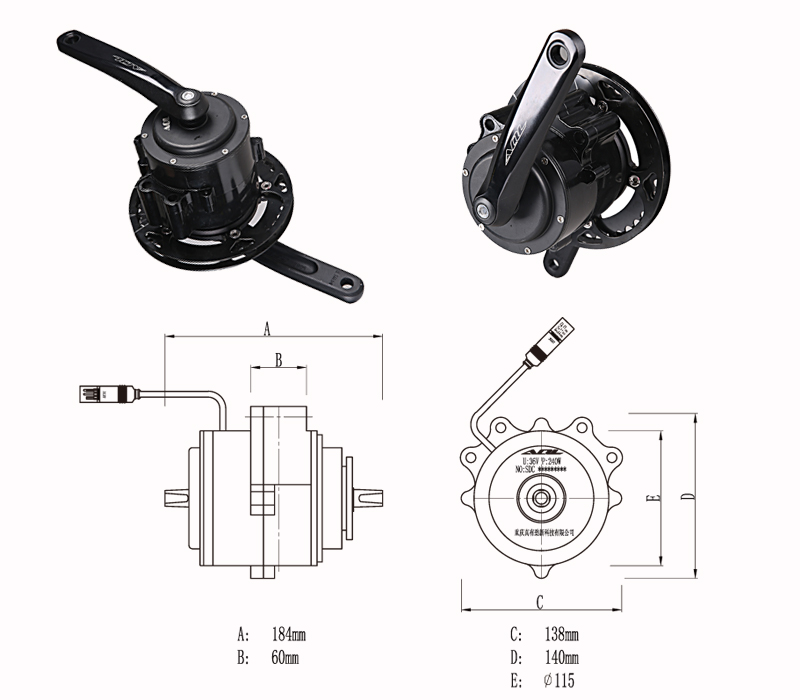

| Model No.:MS1000 | |||
| Position | Mid Motor | Wheel | 34T/38T/42T |
| Construction | Gear Drive | Color | Black |
| Output torque | 110N.m | Rated Power | 250W |
| Rated Voltage | 36V | Reduction Ratio | 1:38 |
| IP Rating | IP54 | Motor Efficiency | ≥75% |
| Max Speed | 25Km/h ,32Km/h | Warranty | 3 years |
| Pedal Sensor | Speed | Weight | 5KG |
| Noise | <55dB | Operating Temperature | -10~40°C |
| Standards Followed | CE/ROSH | ||
|
|||||||||||||||||||||||||||||||||||||||||||||||

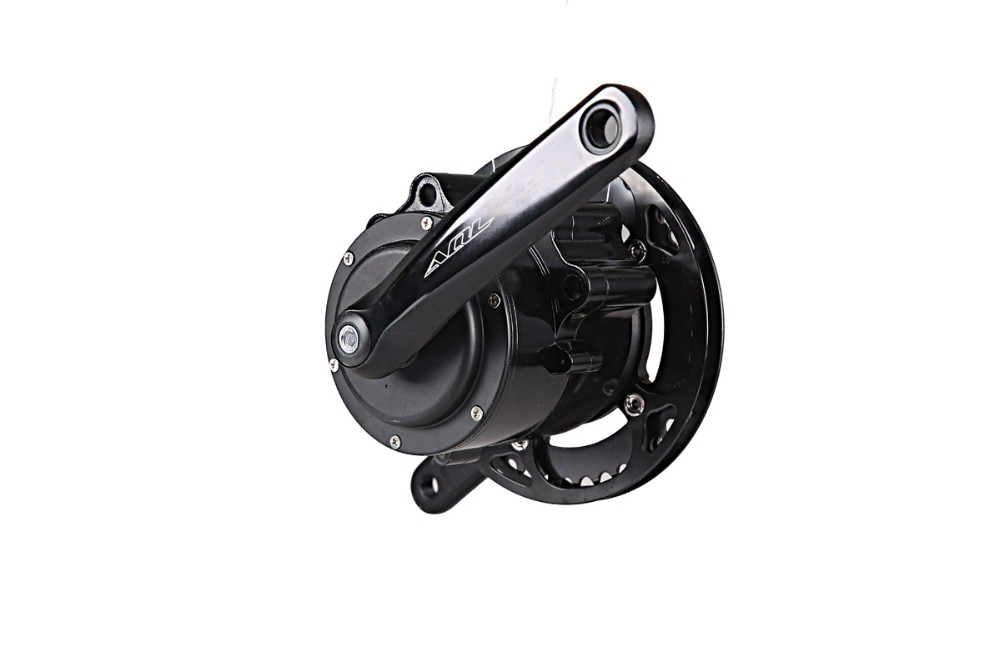

| Model No.:MT1000 | |||
| Position | Mid Motor | Wheel | 34T/38T/42T |
| Construction | Gear Drive | Color | Black |
| Output torque | 110N.m | Rated Power | 250W |
| Rated Voltage | 36V | Reduction Ratio | 1:38 |
| IP Rating | IP54 | Motor Efficiency | ≥75% |
| Max Speed | 25Km/h ,32Km/h | Warranty | 3 years |
| Pedal Sensor | Speed+Torque | Weight | 5KG |
| Noise | <55dB | Operating Temperature | -10~40°C |
| Standards Followed | CE/ROSH | ||

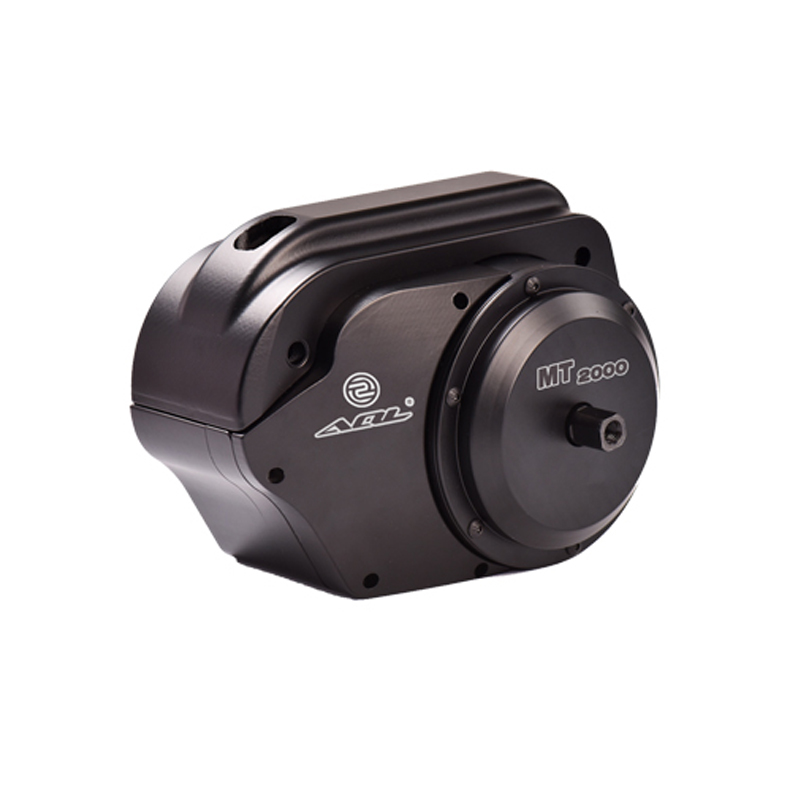

| Model No.:MT2000 | |||
| Position | Mid Motor | Wheel | 34T/38T/42T |
| Construction | Gear Drive | Color | Black |
| Output torque | 120N.m | Rated Power | 350W |
| Rated Voltage | 48V | Reduction Ratio | 1:38 |
| IP Rating | IP54 | Motor Efficiency | ≥75% |
| Max Speed | 25Km/h ,32Km/h | Warranty | 3 years |
| Pedal Sensor | Speed+Torque | Weight | 5KG |
| Noise | <55dB | Operating Temperature | -10~40°C |
| Standards Followed | CE/ROSH | ||
Package content
|
Item name
|
Description
|
qty
|
|
Mid drive motor
|
36V,250W / 48V,350W
|
1 piece
|
|
Battery (Option)
|
Integrated battery (11Ah/13Ah/14Ah/17Ah lithium battery )
|
1 piece
|
|
Frame (Option)
|
Customize frame with exclusive mid motor bracket
|
1 piece
|
|
Dispaly
|
TFT Display
|
1 piece
|
|
Brake levers
|
Cable brake, cut-off electricity (option: Hydrolic brake)
|
1 set
|
|
Cable with waterproof connector
|
Include main cable,controller cable, motor cable and brake cable, Waterproof level: IP65
|
1 set
|
|
Controller
|
36V/48V, Sine wave
|
1 set
|
|
Recharger
|
Lithium battery recharger (42V2A)
|
1 piece
|
|
Throttle (option)
|
thumb throttle
|
1 piece
|
Customize Service On Mid Drive Kits
【Solution 1 : Mid Drive Kit】—If you have your own factory which could weld the bracket with your bike frame, you could only buy our mid drive kits.
【Solution 2: Electric Bike Frame + Mid Drive Kits.】—If you are factory to accemble ebike, you could choose this solution. 2 options for you : ① Our bike frame+Our mid drive kits. ② Your bike frame+Our mid drive kit.
【Solution3: Completed Ebike】—We are manufacture which have advanced ebike assembling line, if you need completed ebike, we could make it for you and ship them in CKD or SKD condition.
