Electric Bicycle Wholesale 250W/350W/500W/750W/1000W EMTB Frame Bike For Adults
Unique Exclusive Patent Self Designed
10 YEARS production and research experience on electric bike and ebike components such as mid motor/bike frame/battery ect.
High quality and reasonable price in electric bicycle with
- AQL Mid Drive Motors, speed sensor and torque sensor for your options.
- Pedal-assist and Intelligent brushless controller system.
- ZOOM hydraulic disc brake or mechanical disc brake system.
- LCD display.
OEM AND CUSTOMIZE
1.We will give your inquiry immediate attention.
2.Technical Department can provide you with professional sulotion for electric bike.
3.Design Department can design all electric bike for your own exacting specification.
4.Purchasing Department can offer suitable kit for electric bicycle,such as motor, battery,controller,display,frame,fork,etc.
Detail Information
|
Data on Electric Bike
|
|||
|
Frame
|
AL6061
|
Stem
|
AL, Fixed
|
|
Fork
|
SR Hydraulic Suspension
|
Saddle
|
SR
|
|
Head Set
|
NECO
|
Tyre
|
CST 1.95 optional:fat 4.0
|
|
Rim
|
Double AL
|
Front Light
|
Optional
|
|
Hub
|
BEARING
|
Chain
|
KMC
|
|
Brake
|
Hydraulic Disc Brake
|
Handle Bar
|
ZOOM AL6061
|
|
E-Brake Lever
|
Tektro Hydraulic Electric brake lever
|
Seat Post
|
ZOOM AL6061
|
|
Shifting Lever
|
Shimano 10s
|
||
|
Rear Derailleur
|
Shimano 10s
|
||
|
Free Wheel
|
Shimano 10s
|
||
|
Front Derailleur
|
N/A
|
||
|
Data on Motor
|
|||
|
Sensor
|
Speed Sensor Optional:Torque Sensor
|
||
|
Display
|
LCD Optional:TFT/LED
|
||
|
Voltage (V)
|
36V Optional:48v
|
||
|
Power (W)
|
250W Optional:350W 500W 750W
|
||
|
Motor
|
Brushless,gear transimission
|
||
|
Max torque (N.m)
|
110
|
||
|
Max Speed (Km/h)
|
25/32
|
||
|
Battery (Wh)
|
374（Samsung cell) Optional:468
|
||
|
Charging Time
|
6h with 2A charger (374Wh) 7h with 2A charger (468Wh)
|
||
- Large Capacity Battery– Large capacity 48V 13Ah battery, offers strong climbing and acceleration capabilities, assists travel of up to 35+ miles per full charge. The battery is hidden in the frame, with double lock mechanism secured for anti-theft and avoids drop-out during furious riding. Removable for charging.Fast charged to 80% in 4 hours.

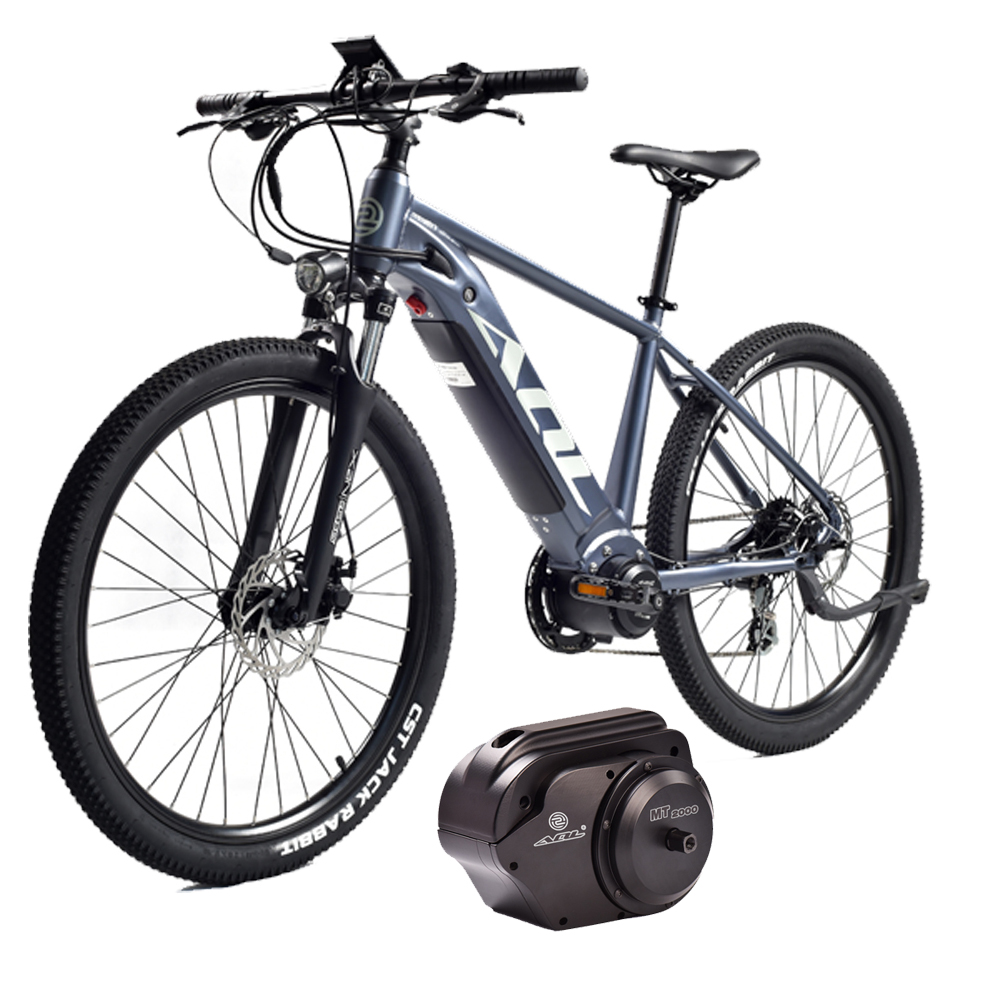

- Powerful Mid Motor– Equipped with 250W/350W/500W/750W/1000W high speed brushless motor, provides strong power and climbing capabilities, assists the speed up to 25 mph. These features enable it to be a go-anywhere electric bike, whether for daily commute or hard trails, in the cities or in the mountains. It takes you freely to anywhere you desire.
- Multifunctional TFT Color Display– The TFT color display provides multi functions to support your riding. You may adjust the assist level from 0 to 5 to lower or increase the speed assistance. It’s easy to get the information of the speed, the battery output voltage and capacity status, the accumulated mileage at a glance of the display.
- High Performance Suspension Fork– Equipped with professional suspension fork especially for electric mountain bike. With the suspension adjustable, you may manipulate the bike freely in all terrains, no matter on rugged trails or in smooth streets.
