Urban Low Step Through Cruiser With In-frame Battery Electric Bike

Urban Low Step Through Cruiser With In-frame Battery Electric Bike

Key Specifications:

  • Material:  Aluminum Alloy 6061
  • Seat Post Size: 16″/17″/18″/19″
  • Tire: 26″ /27.5″/ 29″
  • Motor: BAFANG MID MOTOR
  • Battery: In-frame removable battery design

Contact Me Anytime:

  • Email: marissaebike@mpebike.com
  • Whatsapp: +86 13452079409
  • Skype: +86 13452079409
  • Wechat: +86 13452079409
  • Instagram: yeahbebrave


Product Detail

Product Tags

PRODUCT DESCRIPTION

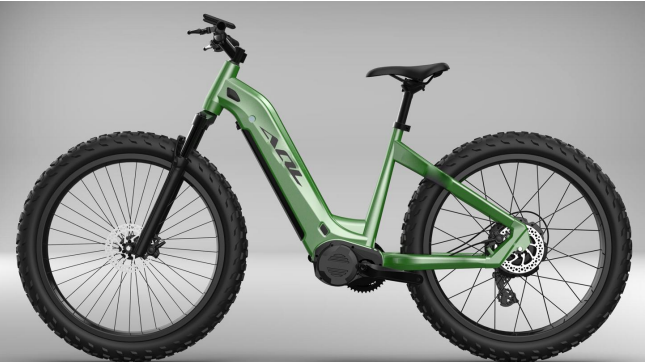

Bafang 8fun mid motor ebike

SPECIFICATION



Data On Cycle
Frame AL 6061 Stem AL, Fixed
Fork SR Hydraulic Suspension Saddle SR
Head Set NECO Tyre
CST / KENDA
1.95″- 4.0″
Rim Double AL Front Light Optional
Hub Bearing Chain KMC
Brake Hydraulic/Mechanical
Disc Brake
Handle Bar ZOOM AL6061
E-Brake Lever
Tektro
Hydraulic electric brake lever
Seat Post ZOOM AL6061
Shifting Lever Shimano 7/8/9/10/11s
Rear Derailleur Shimano 7/8/9/10/11s
Free Wheel Shimano 7/8/9/10/11s
Front Derailleur N/A
Data On Motor
Sensor
Speed Sensor
Optional:Torque Sensor
Display
LCD
Optional:TFT/LED
Voltage (V)
36V
Optional:48V
Power (W)
250W
Optional:350W/ 500W/ 750W/ 1000W
Motor
Brushless,gear transimission
Max torque (N.m) 110
Max Speed (Km/h) 25/32
Battery
Samsung/LG/EVE  (cell)
13AH/14AH/15AH/17.5AH/20AH
Charging Time 6h with 2A charger (374Wh)    7h with 2A charger (468Wh)



Recommendation Collocation:

Full bike:   26″-29”  X 1.95″-4.0″ tire.
                     36V/48V/  350W-500W-750W-1000W  motor.
                     Loading QTY (40HQ): 190-200units

Frame + electric parts:  frame, motor, battery, display, main cable.
                                               Loading QTY (40HQ): 650-700 sets

 COMPANY  PROFIE



















FAQ



1. What’s your MOQ request?

Usually, for an order direct from our factory in China, we request for a normal order by 1X20′ container to start. The models and colors can be mixed in this containers. Usually, we request MOQ per model/color: 30pcs.
Usually, for a sample order or a small quantity order.

2. What’s your delivery time?

General speaking, it takes about 45-55 days to get an order ready from MOQ to 40′HQ container. But it may take some extra time, according to your actual quantity and complexity of your order details. For example, if your order is covering some details specially developed for you, the delivery time may be longer.

3. What’s your payment term?

Usually, we request 30% by T/T in advance, balance to be paid before shipment, or 100% by irrevocable confirmed L/C payable at sight. We also accept payment to be transferred through Alibaba Trade Assurance.

4. What’s your warranty for your bicycle?

Frame and fork: 1 year’s warranty
All the electric components(including the battery): 2years’ warranty
Mechanical parts:1/2 year’s warranty

5. Do you accept OEM customer’s orders?

Yes, in our factory in China, we can make the bicycle according to customer’s specification, color combination and even logo/design, as well as package request, provided the order is by 1X20′ container and more. Otherwise, we have to negotiate it.

6.  What’s about your sample policy?

We are honored to supply samples for your check our quality and actual manufacturing value. The samples may need to pay some additional charges. But if you purchase the container order, it can be refund to you. Usually , in our China factory, it takes 3-4 weeks to get the sample bikes ready, after receipt of your full sample payment.

7.  What’s your bike quality situation?

It is the fact what we manufactured are all in middle/high quality classes even in European market, closing to the A-brand in the world. All the electric bicycles we manufactured is basically according to present European Standard, especially for European market. It may change a little bit, according to standard and regulations in the destination sales countries.

8. What’s your normal package?

The package for electric bikes with  middle motor, one piece per carton SKD 85%, that means front wheel, handlebar set bound to the frame; the package for electric bikes with  motor, usually, one piece per carton SKD 95%, that means front wheel to be assembled to the bike front fork, while handlebar set to be bound to frame. Inside the carton, we will arrange some necessary inner protection pads in order that the bicycle kept perfect, after long transportation and frequent loading and off-loading.

9. Will you deliver the right products as I ordered? How can I trust you?

The core culture of our company is based on integrity and honesty. Our company have been audited and approved by TÜV/SÜD, Germany.
Also, we are 10 years’ producing experience in the line of ebikes, with good and regular transaction history data.
